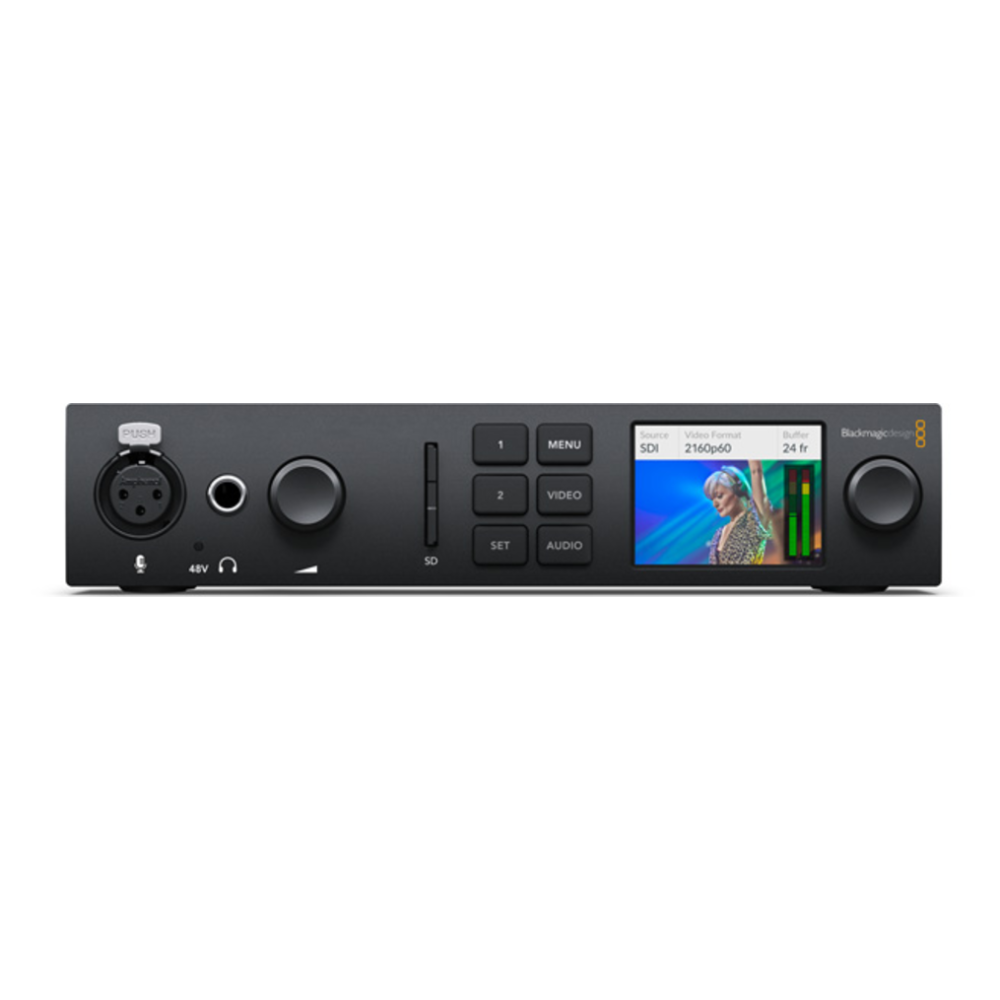

Blackmagic UltraStudio 4K Mini

FULL DESCRIPTION

The Blackmagic UltraStudio 4K Mini is a professional Thunderbolt 3 capture and playback solution designed for broadcasters, content creators, live production teams, and post-production facilities. It delivers broadcast-quality video up to 4K DCI at 60 frames per second, supporting HDR workflows and high-precision color processing.

Combining 12G-SDI and HDMI 2.0 connections, professional analog and digital audio, a front-panel LCD display, and a built-in SD card reader, UltraStudio 4K Mini provides a compact yet powerful hub for modern video workflows. It is suitable for studio installations, mobile production setups, and high-end editing environments.

KEY FEATURES

• Broadcast-quality video – Capture and playback up to 4K DCI 60p with HDR support.
• Thunderbolt 3 connectivity – High-speed data transfer and host power delivery.
• Comprehensive I/O – 12G-SDI and HDMI 2.0 connections for maximum compatibility.
• Front-panel LCD display – Real-time signal monitoring and quick configuration.
• Professional audio support – Balanced analog I/O, XLR microphone input, and headphone output.
• Integrated SD card reader – Direct access to camera media for faster workflows.

TECHNICAL SPECIFICATIONS

• Host interface: Thunderbolt 3
• SDI input: 1 x 12G-SDI
• SDI outputs: 2 x 12G-SDI plus loop-through
• Supported SDI formats: SD, HD, 2K, Ultra HD, and 4K DCI up to 12G
• HDMI: 1 HDMI 2.0 input, 1 HDMI 2.0 output
• SDI audio: Up to 16 embedded audio channels
• Analog audio: Two balanced inputs and two balanced outputs (6.35 mm jack)
• Microphone input: 1 XLR with software-controlled phantom power
• Headphone output: 6.35 mm jack
• USB port: USB-C 3.1 Gen 1
• Card reader: Integrated SD card reader
• Display: Front-panel LCD for monitoring and setup
• Power: Thunderbolt 3 bus-powered with up to 45 W power delivery

WHAT’S IN THE BOX

• Blackmagic UltraStudio 4K Mini
• Power cable
• Quick start guide
• Warranty documentation

FAQ

What is UltraStudio 4K Mini used for?

It is a professional capture and playback device used for live production, streaming, editing, and broadcast workflows.

Does it support 4K video?

Yes, it supports video signals up to 4K DCI at 60 frames per second with HDR.

Is it suitable for live streaming?

Yes, it is ideal for professional live streaming thanks to its low latency and SDI/HDMI connectivity.
