RED KOMODO-X Z Mount Power Zoom Pack

FULL DESCRIPTION

The RED KOMODO-X Z Mount Power Zoom Pack is a compact yet formidable bundle for videographers, broadcast operators, and filmmakers. It combines a redesigned 6K Super 35 Global Shutter sensor, a reinforced Nikon Z mount with locking ring for maximum rigidity, electronic iris and advanced autofocus control, and an included power-zoom lens covering 28–135 mm. This all-in-one kit prioritizes agility, image quality, and versatility for modern productions.

Ideal for documentaries, live events, corporate and lifestyle work, multi-camera setups, and Virtual Production. The compact body balances well on gimbals and lightweight rigs; the Outrigger Handle enables confident one-hand operation during dynamic moves. The 49 Wh micro V-Lock battery delivers practical runtime in mobile scenarios. Native Nikon Z users benefit from immediate lens compatibility, and optional adapters extend support to additional professional mounts.

KEY FEATURES

• Super 35 6K/80fps Global Shutter sensor for zero rolling-shutter artifacts, ideal for fast action, VFX, and LED volumes.
• Locking Nikon Z mount offering superior mechanical rigidity and electronic iris/AF control.
• Included NIKKOR Z 28–135mm f/4 PZ with smooth power zoom and selectable speeds for versatile run-and-gun coverage.
• Integrated 2.9″ touchscreen LCD for quick setup and monitoring; supports external monitors as needed.
• Advanced connectivity and IP workflows including 12G-SDI, USB-C offload, built-in Wi-Fi, and streaming/control options.
• Professional sync with PTP and tri-level genlock plus adjustable offset for multi-camera rigs.
• Flexible power with an included 49 Wh REDVOLT NANO-V and external DC input.
• Robust build in aluminum alloy, compact footprint, and balanced weight for mobile shooting.

TECHNICAL SPECIFICATIONS

• Sensor: Super 35 Global Shutter CMOS, approx. 19.9 MP (≈ 27.03 × 14.26 mm).
• Resolutions & Frame Rates (REDCODE RAW):
  • 6K 17:9 (6144 × 3240) up to 80 fps
  • 5K 17:9 (5120 × 2700)
  • 4K 17:9 (4096 × 2160) up to 120 fps
  • 2K 17:9 (2048 × 1080) up to 240 fps
• Acquisition formats: 17:9, 2:1, 2.4:1, 16:9, 1:1; anamorphic support 2×, 1.8×, 1.6×, 1.5×, 1.3×, 1.25×.
• Lens mount: Nikon Z with locking ring; electronic iris and autofocus control.
• Included lens: NIKKOR Z 28–135mm f/4 PZ; motorized power zoom; close-focus ~34 cm (~13.4").
• Display: 2.9″ integrated touchscreen LCD (1440 × 1440).
• Connectivity & I/O:
  • 12G-SDI output up to 4K60p
  • USB-C with data/offload functions
  • Built-in Wi-Fi for control and IP offload
  • Streaming up to 6K with a dedicated license
  • Frame-accurate sync: PTP, tri-level genlock with adjustable offset
• Power:
  • Included REDVOLT NANO-V 49 Wh (micro V-Lock)
  • External DC input 11–17 V via 6-pin DC-IN
• Body & Dimensions:
  • Aluminum alloy construction
  • Approx. 129.37 × 101.26 × 95.26 mm
  • Weight ≈ 1.18 kg (body only)
• Dynamic range: declared over 16.5 stops.
• Operating conditions:
  • Operating: 0 °C – 40 °C
  • Storage: −20 °C – 50 °C; up to 85% RH non-condensing
• Audio:
  • Integrated dual-channel digital microphones (24-bit / 48 kHz)
  • Mic/line input with +48 V via 5-pin audio port

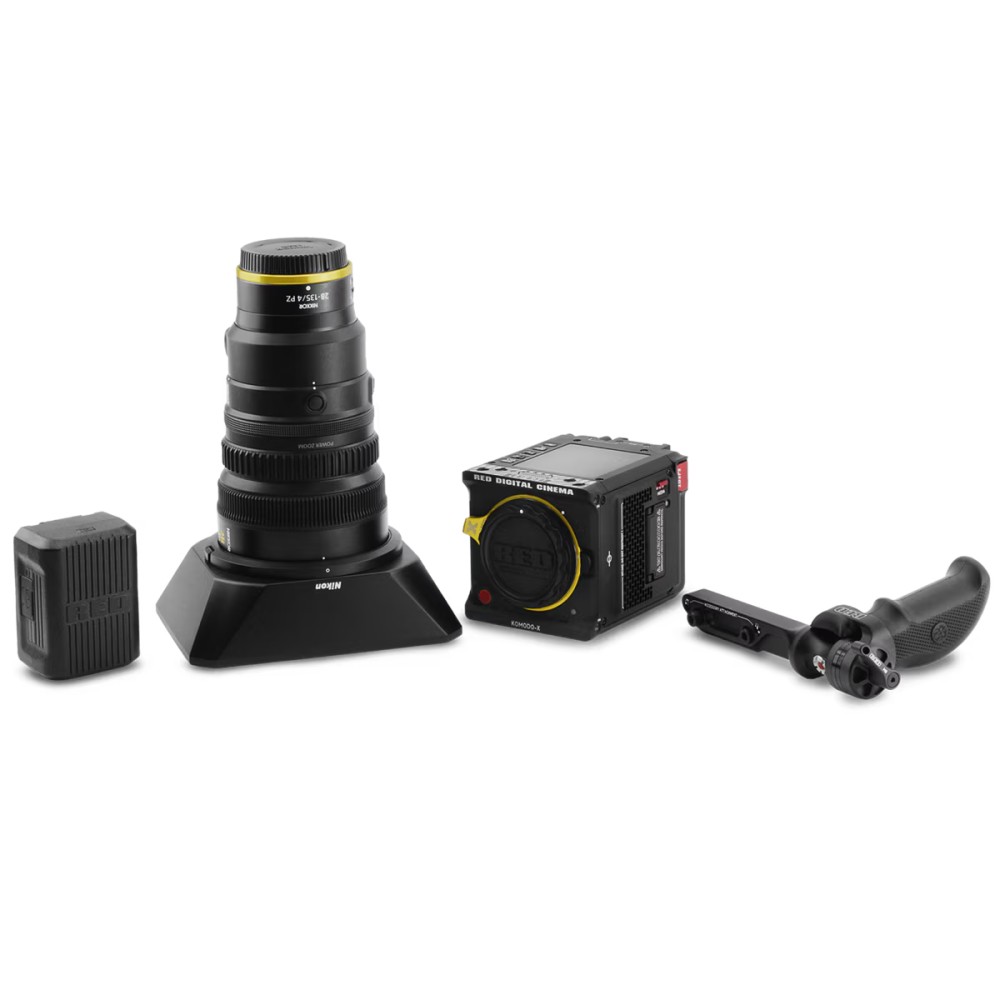

WHAT’S IN THE BOX

• RED KOMODO-X Z Mount 6K camera body with integrated LCD
• NIKKOR Z 28–135mm f/4 PZ lens with caps and hood
• REDVOLT NANO-V 49 Wh (micro V-Lock)
• Outrigger Handle with Rec/Stop button
• AC power adapter and standard cabling included with the pack
• Documentation and limited manufacturer warranty

FAQ / FREQUENTLY ASKED QUESTIONS

Can I use PL-mount lenses with this setup?

Yes. With optional adapters, PL-mount lenses can be used while maintaining professional rigidity and control.

How does it perform in low light and what is the dynamic range?

The camera offers a declared dynamic range of over 16.5 stops. Accurate exposure and a solid post workflow help maximize low-light results.

How is the power-zoom controlled on the included lens?

The zoom is motorized with selectable speeds and can be controlled from the lens, the camera body, or compatible remote solutions.

What runtime can I expect from the 49 Wh battery?

Runtime depends on resolution, frame rate, accessories, and ambient temperature. Under typical conditions it provides practical autonomy; for long shoots, spare batteries are recommended.

Is it suitable for multi-camera and LED volume work?

Yes. PTP and tri-level genlock with adjustable offset make it well-suited to multi-camera rigs and virtual production environments.
