AVMATRIX

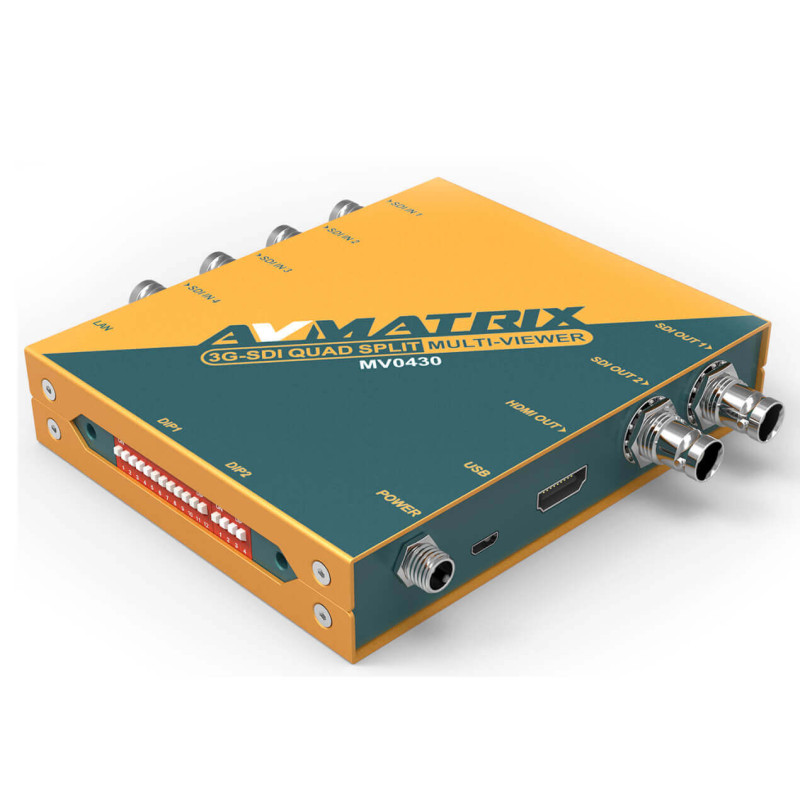

MV0430

The MV0430 is an exquisite and professional SDI multiviewer which features 4-channel 3G / HD / SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-chararcter UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.

Hurry! only 1 items left in stock.
€302.06
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
Connections
SDI Video Input SD/HD/3G-SDI (75Ω) x4
SDI Video Output SD/HD/3G-SDI (75Ω) x2
HDMI Video Output HDMI Type Ax1
Standard
SDI & HDMI Colour Space YUV or RGB for inputs, YUV for Outputs
SDI Auto Switching Auto Selects SD, HD, and 3G-SDI on input
SDI Compliance SMPTE 292M / SMPTE 259M / SMPTE424M
SDI Video Rate SD / HD / 3G-SDI
SDI & HDMI Output Video Format 1080p - 60 / 50 / 30 / 25 / 24 // 1080i - 60/50 // 720p 60 / 50 / 30 / 25
SDI Input Format Support 1080p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 1080PsF - 30 / 29.97 / 25 / 24 / 23.98 // 1080i - 60 / 59.394 / 50 // 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 625i 50 PAL // 525i 59.94 NTSC
Controls
DIP Switches Configure Settings Manually
LAN Port Configuration and Firmware Updates
USB Port USB Keyboard
Common Parameters
Relative Humidity 0% - 90% non-condensing
Size
Dimensions 125.5 x 104 x 24.5mm
Weight 465 g
Power
Power Connector Threaded Locking DC Connector
Power Consumption 4.5W
Voltage Range 0% to 90 non-condensing
Environment
Operating Temperature -20°C to 60°C (HDMI Output is 0°C - 60°C)
Storage Temperature -30°C to 70°C
