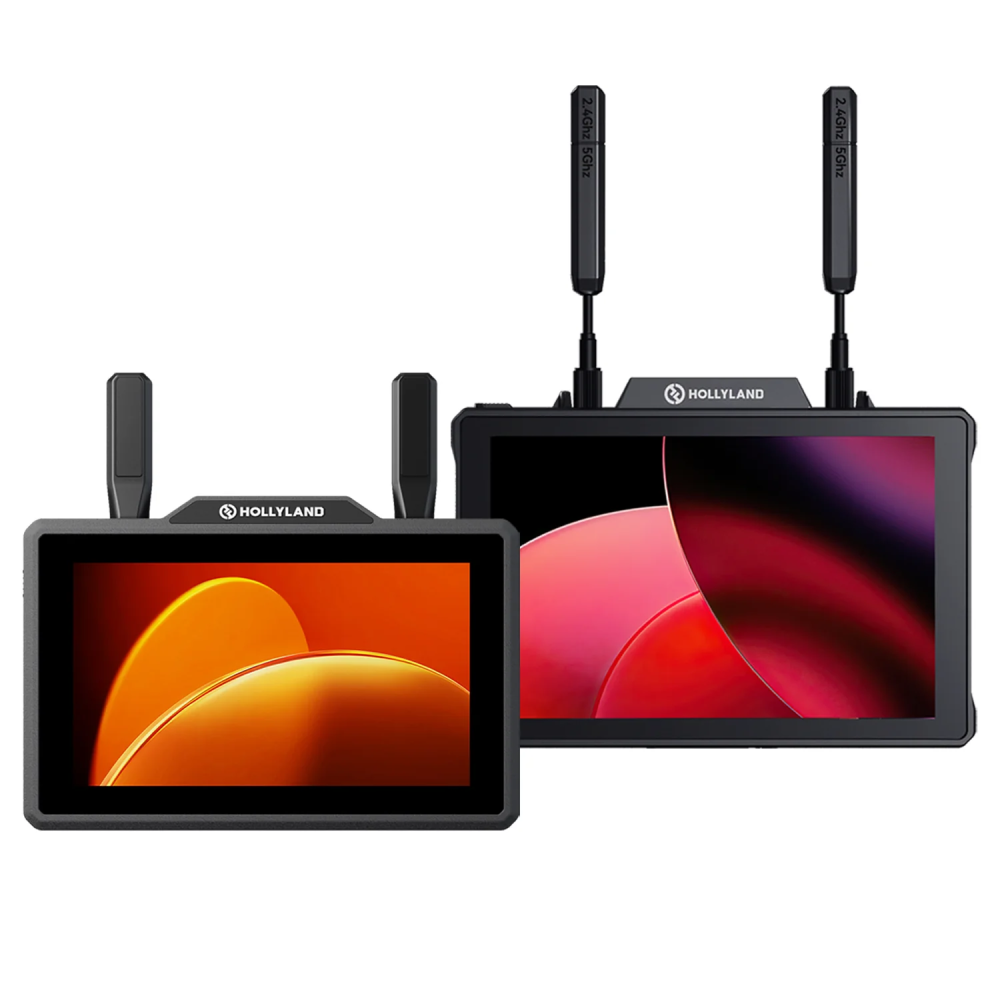

Hollyland Pyro Wireless Transceiver Monitor Kit (5.5" & 7")

DETAILED DESCRIPTION

The Hollyland Pyro 5 + Pyro 7 kit merges two professional all-in-one transceiver monitors—each unit can act as a transmitter, receiver, and monitor. With dual-band 2.4/5 GHz and automatic frequency/dual-band hopping, you get stable wireless up to 400 m line-of-sight with a minimum latency around 60 ms. The 5.5" Pyro 5 and 7" Pyro 7 deliver outdoor-ready visibility up to 1500 nits. The HollyOS toolset—waveform, vectorscope, zebra, focus assist, false color, anamorphic de-squeeze, 3D LUTs—streamlines on-set work. Pyro 5 adds proxy recording (SD/USB), while Pyro 7 enables MP4 recording to SD for quick reviews and exports.

For single-operator and multi-camera teams alike, you can freely set each monitor to TX or RX and use Broadcast Mode (1 TX → 4 RX). HDMI/SDI I/O with loopouts ensures smooth integration across cinema, commercial, event and live streaming workflows.

KEY FEATURES

• All-in-one transceivers: switch each unit between TX and RX, built-in monitoring.
• 2.4/5 GHz dual-band with AFH/ADH for robust performance in congested RF environments.
• Broadcast Mode: one transmitter to four receivers; mobile monitoring supported.
• Up to 400 m LOS, ~60 ms latency for near real-time feedback.
• High-brightness panels: Pyro 5 5.5" 1500 nits; Pyro 7 7" up to 1500 nits.
• HollyOS: waveform, vectorscope, zebra, false color, focus peaking, 3D LUTs, de-squeeze.
• On-board recording: proxy to SD/USB (Pyro 5) and MP4 to SD (Pyro 7, ~40-min sessions).
• Pro I/O: HDMI and SDI with loopouts (see per-model specs).
• Faster operation: customizable hotkeys, quick dual-camera switch (Pyro 7), Smart Channel Scan/Selection (Pyro 5).
• Rugged build: magnesium-aluminum chassis (Pyro 7) for low weight and better heat dissipation.
• Pyro ecosystem compatibility: works with Pyro H/S for scalable monitoring networks.

TECHNICAL SPECIFICATIONS

Pyro 5 (5.5")

• Display: 5.5" LCD touchscreen, 1920×1080, 1500 nits, 16:9.
• Wireless: dual-band 2.4/5 GHz; range up to 400 m LOS; minimum latency ~60–75 ms (Smooth/HD modes).
• Modes: TX/RX; Broadcast Mode (1 TX → 4 RX).
• Video I/O:
  • TX: HDMI 1.4b IN, 3G-SDI IN, HDMI loop-out.
  • RX: HDMI OUT.
  • Typical formats: up to 1080p60; proxy recording to SD/USB.
• Functions: proxy recording with timecode; RTMP streaming; Smart Channel Selection; HollyOS analysis tools.
• Power: NP-F plate; DC IN; D-Tap→DC cable included in kit.
• Camera control: direct camera parameter control via USB-C (model-dependent).
• EAN (kit): 6976068119098.

Pyro 7 (7")

• Display: 7" LCD touchscreen, 1920×1200, up to 1500 nits, 16:10.
• Wireless: dual-band 2.4/5 GHz; range up to 400 m LOS; minimum latency ~60 ms.
• Modes: TX/RX; Broadcast Mode (1 TX → 4 RX); dual-view quick switch.
• Video I/O:
  • TX: HDMI IN (up to 4K30), HDMI loop-out; SDI IN and SDI loop-out (1080p).
  • RX: HDMI OUT (1080p), SDI OUT (1080p), SDI loop-out.
• Functions: MP4 recording to SD (sessions up to ~40 min), file export, LUT on export, screenshot overlay; RTMP streaming; advanced HollyOS tools.
• Power: dual NP-F plate; locking DC IN; D-Tap→DC cable included.
• Chassis: magnesium-aluminum alloy; multiple 1/4"-20 mounts.

WHAT’S IN THE BOX

Pyro 7 contents

• 1 × Pyro 7 (7") wireless transceiving monitor
• 2 × Paddle antennas (2.4/5 GHz)
• 1 × SD card (32 GB)
• 1 × USB-C OTG/Converter
• 1 × D-Tap → locking DC power cable
• 1 × 7" tempered glass protector
• Manual + Warranty card

Pyro 5 contents

• 1 × Pyro 5 (5.5") wireless transceiving monitor
• 2 × Easy-install short antennas
• 1 × 5.5" tempered glass protector
• 1 × USB-C OTG adapter
• Quick guide + Warranty card

Kit accessories

• 1 × Extra paddle antenna (3 total paddles)
• 1 × 7" sun hood
• 1 × 5.5" sun hood (with mount)
• 1 × Cold shoe mount
• 2 × Side & bottom aluminum handles
• 2 × Additional D-Tap → DC cables
• 1 × “Pyro Ecosystem” hard case
• 1 × Ecosystem leaflet

FAQ

What latency should I expect?

In optimal RF conditions, minimum latency is ~60 ms—suitable for on-set monitoring and pulling focus.

How many receivers can one transmitter feed?

In Broadcast Mode, one transmitter can feed up to four receivers.

Do these monitors record?

Yes. Pyro 5 supports proxy recording to SD/USB; Pyro 7 records MP4 to SD (sessions up to ~40 min).

Is the kit compatible with other Pyro devices?

Yes. It integrates with the Pyro ecosystem (including Pyro H/S) for scalable multi-monitor setups.
