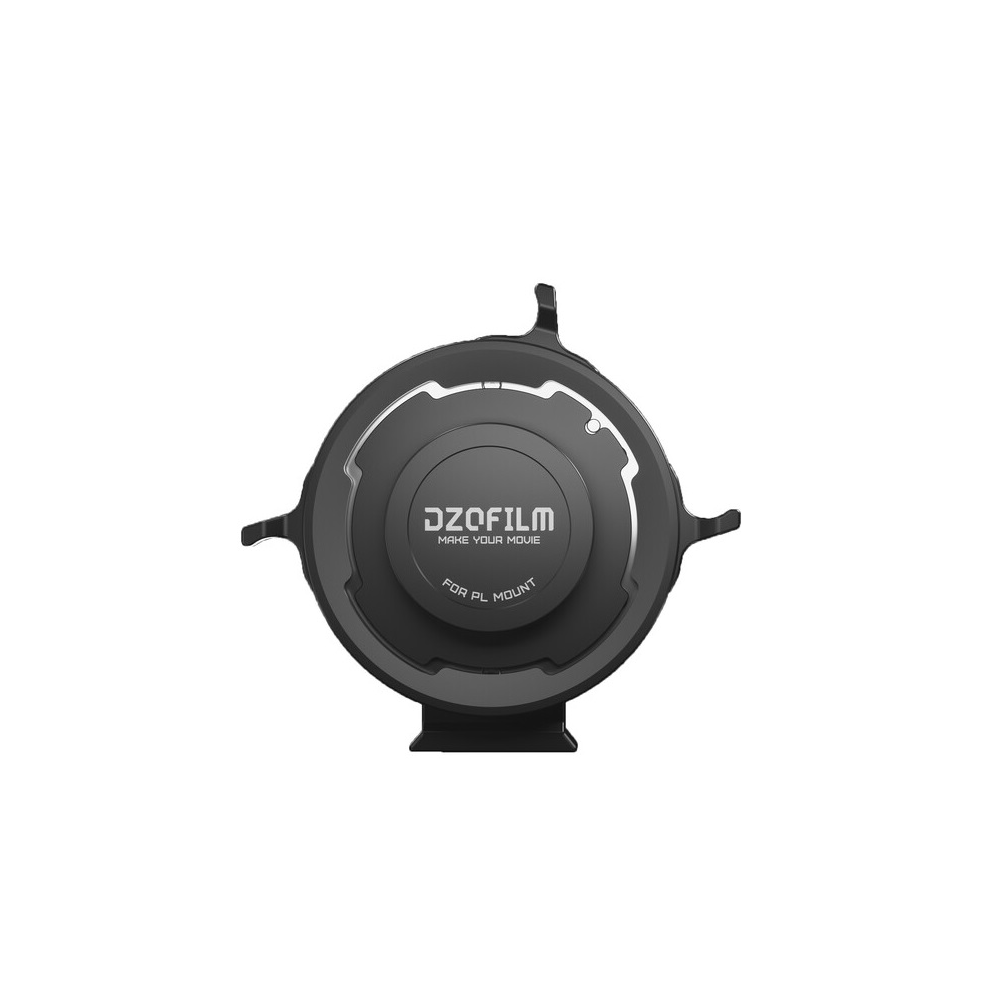

DZOFilm Octopus – PL to Sony E Adapter

FULL DESCRIPTION

The DZOFilm Octopus PL → Sony E adapter allows cinema PL lenses to be mounted on Sony E-mount camera bodies while maintaining optical precision and infinity focus. Built to ±0.01 mm tolerances with a cine-style active locking system, it ensures a stable, play-free mechanical connection. The aluminum alloy body combined with a stainless steel mount provides durability without excess weight, and the flocked interior minimizes internal reflections.

This adapter is designed for filmmakers, cinematographers, and professionals looking to use PL legacy lenses on Sony mirrorless cameras. It is ideal for cinema productions, commercials, short films, or creative shoots where PL optics are required on Sony E systems (Cinema Line, full-frame, APS-C).

The included 1/4″-20 support foot helps relieve stress from the camera mount when using heavy lenses. No electronic communication is provided; focus, iris, and aperture must be controlled manually on the lens.

KEY FEATURES

• High precision: ±0.01 mm tolerance ensures true infinity focus without shimming.
• Robust lightweight build: aluminum alloy body with stainless steel mount.
• Active-locking mechanism: cine-style locking ring eliminates play.
• Flocked interior: reduces internal reflections and flare.
• 1/4″-20 support foot: added stability for heavy cinema lenses.
• Infinity focus retained: optical integrity preserved.
• Professional compatibility: ideal for PL cinema lenses on Sony E cameras.
• Cinema-ready construction: suitable for professional film environments.

TECHNICAL SPECIFICATIONS

• Type: Mechanical PL to Sony E adapter
• Manufacturing tolerance: ±0.01 mm
• Body material: Aluminum alloy
• Mount material: Stainless steel
• Interior: Flocked anti-reflective lining
• Support foot: 1/4″-20 female thread
• Weight base: approx. 154 g
• Total weight PL→E: approx. 390 g
• Lens compatibility: PL / ARRI PL mount
• Camera compatibility: Sony E-mount bodies
• Electronic transmission: Not supported (manual only)
• Infinity focus: Maintained
• Locking system: Cine-style locking ring
• Warranty: 1 year (varies by reseller)

WHAT’S IN THE BOX

• 1 × DZOFilm Octopus PL → Sony E Adapter
• 1 × PL mount port cap
• Documentation / warranty card
• Integrated 1/4″-20 support foot

FAQ

Does it maintain infinity focus?

Yes, it is engineered to preserve infinity focus without shims.

Can it be used with full-frame PL lenses on full-frame Sony cameras?

Yes, it generally does not cause vignetting with full-frame PL lenses.

Are shims required?

No, the adapter is designed to work out of the box without spacers.

Does it support autofocus or electronic controls?

No, all adjustments are manual.

What is the purpose of the 1/4″-20 foot?

It reduces strain on the camera mount when using heavy lenses.

Is a hard case included?

No, a hard case is not included.

Is it compatible with Sony FX3, FX6, FS7?

Yes, it supports Sony E-mount cinema cameras.
