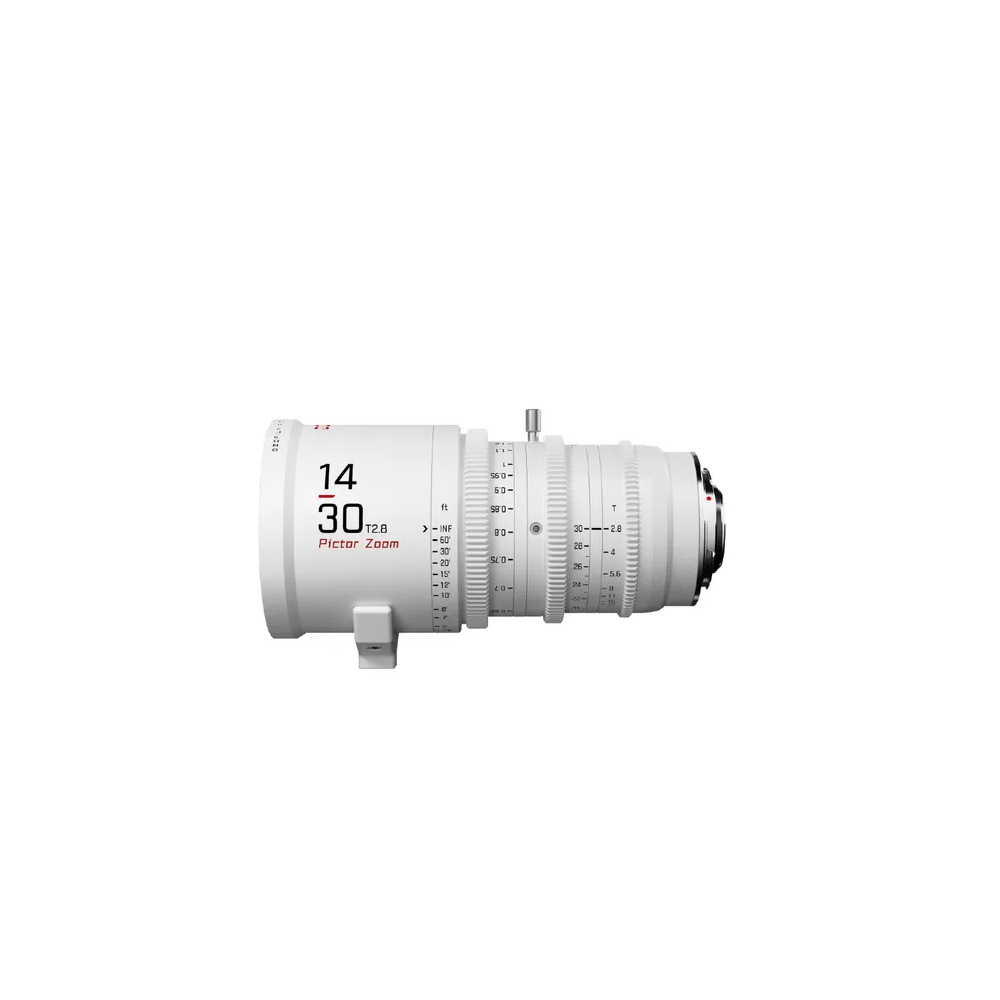

DZOFilm Pictor Zoom 14-30mm T2.8

Full Description

The DZOFilm Pictor Zoom 14-30mm T2.8 is a premium ultra-wide cine zoom for the Super 35 format, expanding the Pictor series with a lens that excels at immersive wide shots and dynamic storytelling. Built for cinematographers, operators, and production teams seeking optical flexibility and consistent performance, it shines on documentaries, commercials, and tight interiors where space is limited but visual impact is crucial.

Thanks to its parfocal design, low focus breathing, and constant T2.8 aperture, the Pictor 14-30mm allows focal changes during takes without losing focus or altering exposure. Cine-standard 0.8 MOD gears and a 95 mm front diameter ensure compatibility with matte boxes, follow focus units, and motorized systems. Interchangeable PL/EF mounts broaden camera compatibility and mirrorless workflows via suitable adapters.

Target users include professional cinematographers, indie productions, advanced videographers, and studios that need wide-angle coverage while maintaining a consistent cinematic look across the Pictor family. It’s particularly useful when switching rapidly from tighter framing to expansive views without swapping lenses.

Key Features

• Constant T2.8–T22 aperture across the zoom range for seamless exposure control.
• Parfocal design: focus remains locked while zooming.
• Close focus ~0.6 m for flexible wide-angle compositions.
• Super 35 coverage with an image circle around 31 mm.
• Interchangeable PL / EF mounts, adaptable to various systems via suitable adapters.
• 16-blade iris delivering smooth bokeh and pleasing transitions.
• Reduced focus breathing thanks to a floating optical structure.
• 0.8 MOD cine gears on focus, iris, and zoom rings for standard follow-focus integration.
• 95 mm front diameter and 86 mm filter thread, compatible with matte boxes and filters.
• Rugged full-metal housing engineered for professional production use.
• Compact and lightweight for its class (~1.88 kg) with ~173 mm length (PL) for gimbal and rig setups.

Technical Specifications

• Focal length: 14–30 mm
• Aperture: T2.8 – T22
• Coverage: Super 35 (image circle ~31 mm)
• Default mount: PL; EF bayonet included
• Optical construction: 21 elements in 17 groups
• Floating optical design to minimize breathing
• Iris blades: 16
• Focus ring rotation: ~270°
• Iris ring rotation: ~61°
• Zoom ring rotation: ~100°
• Zoom ratio: ~2.14×
• Minimum focus distance: 0.6 m
• Front diameter: 95 mm
• Filter thread: 86 mm
• Length: ~173 mm (PL), ~181 mm (EF)
• Weight: ~1,880 g
• Housing material: aluminum / metal
• Gear standard: 0.8 MOD
• Optical stabilization: none
• Electronic communication: none (fully mechanical)
• Support: lens support foot for rig mounting

What's in the Box

• DZOFilm Pictor Zoom 14-30mm T2.8 lens
• Front lens cap
• PL rear lens cap
• Canon EF bayonet/adapter
• EF rear lens cap
• Shim set for mount calibration
• Support foot for rod/rig mounting
• Warranty certificate

FAQ / Frequently Asked Questions

Is the Pictor 14-30mm compatible with full-frame cameras?

No. It’s designed for Super 35 coverage; on full-frame bodies use S35 crop mode.

Will I lose focus while zooming?

No. Its parfocal design keeps focus locked during focal length changes.

What are the weight and length?

Approx. 1,880 g and about 173 mm in PL mount (slightly longer in EF).

Does it feature optical stabilization?

No. There is no OIS; it’s a cinema lens intended for stabilized rigs and supports.

Does it have electronic contacts?

No. It’s a fully mechanical lens with no electronic communication.

Can I use filters or matte boxes?

Yes. It offers a 95 mm front diameter and 86 mm filter thread for standard cine accessories.

What is the minimum focus distance?

Approximately 0.6 m (2 ft), enabling close yet immersive wide-angle shots.

What mounting options are supported?

PL by default with an EF bayonet included; it can be adapted to various systems using suitable adapters.

Is it part of the Pictor zoom family?

Yes. The 14-30mm belongs to the Pictor line, designed for a consistent visual look across focal lengths.
