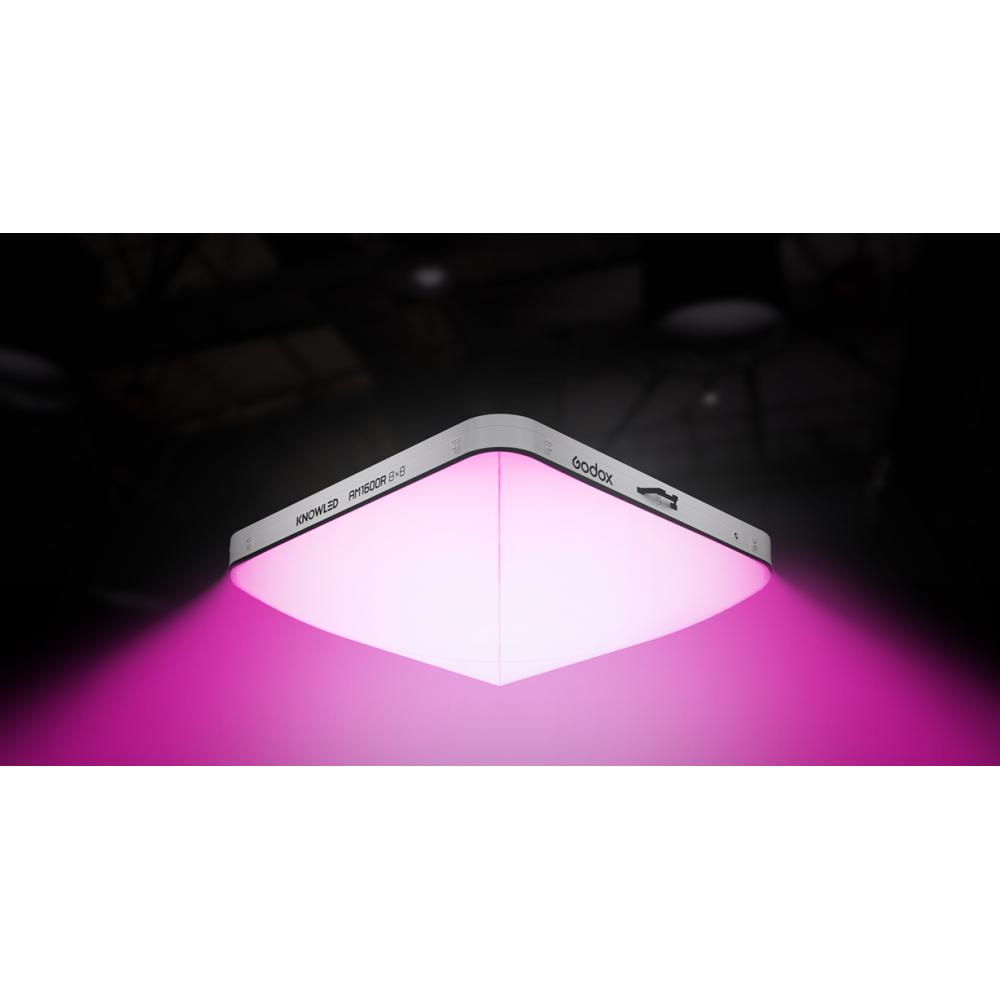

Godox KNOWLED AM1600R

DESCRIPTION

The Godox KNOWLED AM1600R is a full-colour cinematic lighting solution designed to deliver soft, expansive, and ultra-flexible illumination for professional film and broadcast productions. With 1600 W of power, an inflatable butterfly frame, and comprehensive colour control (CCT, RGBW, HSI, GEL, FX), it’s ideal for film, television, commercials, live events, and remote location shoots.

Available in 4×8 ft and 8×8 ft versions, it provides exceptional output and broad coverage, allowing lighting designers to adapt easily to different set sizes and lighting needs.

The foldable, inflatable design ensures quick setup and easy transport, while its IP54-rated construction makes it durable for both indoor and outdoor use. The unit is a perfect solution for cinematographers and gaffers seeking large, lightweight soft-light panels with advanced control and high efficiency.

The AM1600R enables multi-unit synchronization, precise intensity and colour adjustments in real time, and mounting flexibility without the need for traditional truss systems.

KEY FEATURES

• Powerful 1600 W output for large-scale lighting setups.
• Wide 1 800–10 000 K colour temperature range with green/magenta adjustment (-100% ~ +100%).
• Full-colour modes including CCT, HSI, RGBW, GEL, and cinematic FX effects (lightning, fire, TV, etc.).
• Comprehensive control via DMX512/RDM, CRMX wireless, Ethernet (Art-Net/sACN), Bluetooth/NFC and mobile app.
• Inflatable modular “butterfly” frame design for rapid installation and extended suspension time up to 15 days.
• Foldable and portable structure with included flight case for easy transport.
• IP54 protection rating for both light and controller, suitable for outdoor conditions.
• Four dimming curves (Linear, S-Curve, Exponential, Logarithmic) and smooth 0–100% brightness adjustment.

TECHNICAL SPECIFICATIONS

• Model: AM1600R
• Power Input: 100–240 V ~, 50/60 Hz, approx. 1 800 W
• Colour Temperature Range: 1 800 K – 10 000 K
• Green/Magenta Adjustment: -100% ~ +100%
• CRI: ≈ 96; TLCI: ≈ 95
• Dimming Curves: Linear, S-Curve, Exponential, Logarithmic
• FX Modes: 14 pre-programmed effects
• Protection Rating: IP54 (light and controller)
• Control Methods: DMX512/RDM, CRMX Wireless, Ethernet (Art-Net/sACN), Bluetooth/NFC App
• USB-A Port: Firmware update / 5 V⎓1.5 A Output
• Operating Temperature: -20 °C ~ +45 °C
• Controller Dimensions: ≈ 27 × 22 × 37 cm
• Controller Weight: ≈ 11 kg

WHAT’S IN THE BOX

• Godox KNOWLED AM1600R Light Body (4×8 ft or 8×8 ft version)
• Inflatable Butterfly Frame for Light Body
• Controller / Power Supply Unit with Mounting Bracket
• Air Pump for Inflation
• Two Diffusion Fabrics with Different Strengths
• Pancake Softbox Modifier
• Fabric Grid for Light Control
• Light Skirt for Spill Control
• Repair Kit for Inflatable Frame
• AC and DC Power Cables
• Hard Flight Case for Transport and Storage

FAQ – Frequently Asked Questions

What control options are available?

The AM1600R supports DMX512/RDM, CRMX wireless, Ethernet (Art-Net/sACN), Bluetooth/NFC, and onboard control — ideal for multi-unit installations.

Is it suitable for outdoor use?

Yes. Both the light body and controller are IP54-rated for dust and splash resistance, making them ideal for outdoor shooting conditions.

How long does the inflatable setup take?

The frame inflates in about 3 minutes and remains pressurized for up to 15 days without maintenance, greatly simplifying overhead installation.

What is the difference between the 4×8 and 8×8 versions?

The 4×8 ft version offers higher intensity in a smaller area, while the 8×8 ft version provides a softer, broader light for larger setups.

Can multiple AM1600R units be combined in one setup?

Yes. Its modular design and multi-unit sync capabilities allow seamless integration of several fixtures for complex lighting designs.
