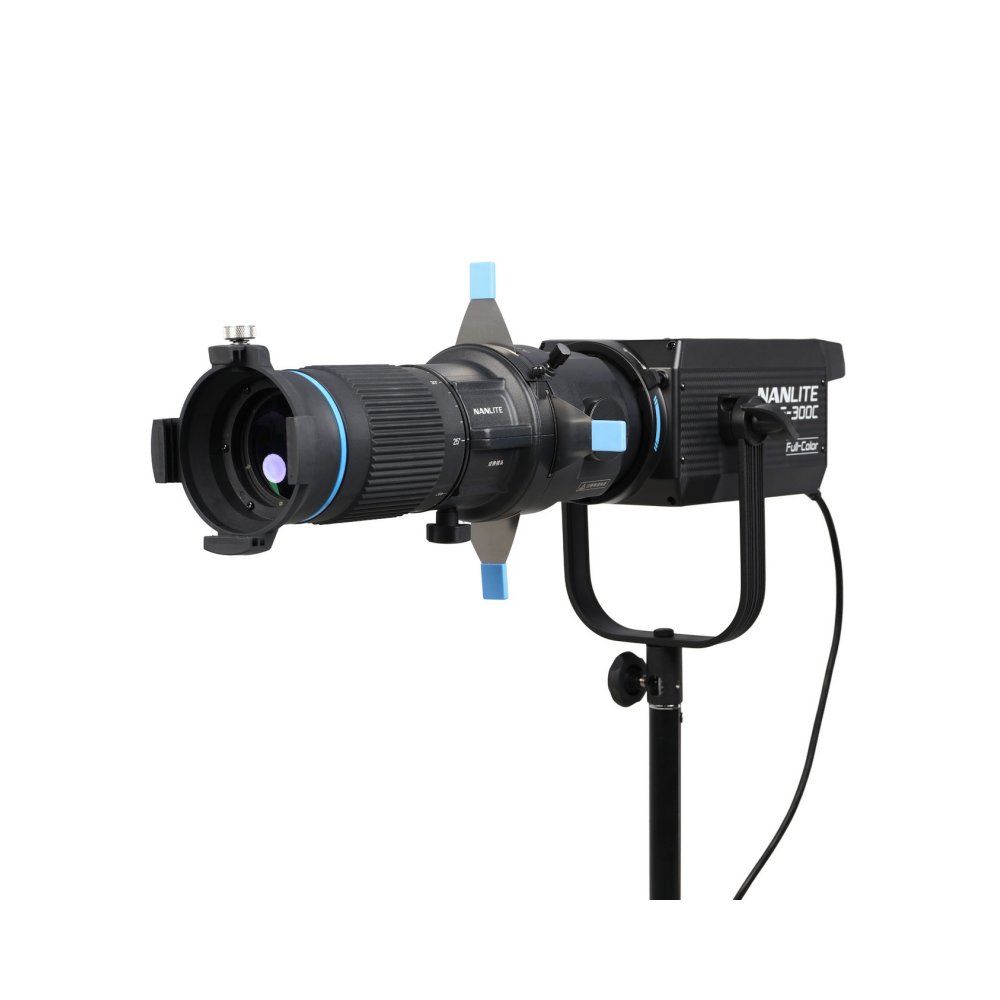

NANLITE Bowens Mount Projection Attachment 25°‑45°

Full Description

The NANLITE Bowens Mount Projection Attachment 25°‑45° (PJ‑BM‑25‑45) transforms Bowens-mount lights up to 800 W into powerful precision tools. Featuring a zoom range from 25° to 45° via a rotating ring—no need to remove gobos or shutters—it delivers accurate and customizable beams, ideal for photo sets, studio shoots, or on-location filmmaking.

Compatible with NANLITE Forza, FS, and FC series as well as third-party Bowens lights, it's designed for professionals who demand flexibility and control. Constructed from lightweight aluminum and thermal-dissipating composite materials, it weighs only 2.68 kg (5.91 lb) and mounts directly without an additional yoke.

Aspherical optics with anti-reflective coating and a matte-black internal barrel ensure sharp projections with minimal chromatic aberration and clean beam edges.

Main Features

• 25°–45° zoom range, adjusted via a smooth 360° rotating barrel without disassembly.
• M-size gobo holder built-in, includes 4 gobos; supports third-party gobos.
• Gel frame slot for quick and easy color gel changes.
• Internal shutters and magnetic blade for precision beam shaping and spill control.
• High-precision optics: aspherical lens with anti-reflective coating and matte barrel for clean beam edges.
• Lightweight and compact: only 2.68 kg (5.91 lb), mounts directly to fixtures, includes padded flight case.
• Extended compatibility: works with Bowens lights up to 800 W, including NANLITE Forza, FS, and FC series.

Technical Specifications

• Weight: 2.68 kg (5.91 lb)
• Zoom Range: 25°–45° with 360° rotating adjustment ring
• Mount: Bowens-type, compatible with lights up to 800 W
• Lens: Aspherical with anti-reflective coating, matte-black internal barrel
• Gobo Holder: M-size, supports 4 included gobos and optional third-party sets
• Gel Frame: Insert slot for color gel filters
• Shutters: Magnetic blade for light shaping
• Optional Iris: 18-blade diaphragm available separately
• Materials: Aluminum and thermal-resistant composites
• Case: Padded flight case included for secure transport

Box Contents

• 1× 25°–45° Projection Attachment (Bowens mount)
• 1× Front protective cap
• 1× Rear protective cap
• 4× M-size gobos
• 1× Gobo holder
• 1× Gel frame
• 1× Magnetic shutter blade
• 1× Padded flight case
• 1× User manual

FAQ

How do I adjust the beam angle?

Simply rotate the zoom ring to shift between 25° and 45°, without removing gobos or shutters.

What gobos are included?

Four M-size gobos are included. The holder is compatible with NANLITE and third-party gobo sets.

Do I need a yoke or mounting bracket?

No, the unit can be mounted directly onto Bowens fixtures thanks to its lightweight 2.68 kg design.

Can it be used in high-temperature environments?

Yes, it’s built from aluminum and heat-dissipating materials for reliable outdoor or studio use.

Is it compatible with non-NANLITE lights?

Yes, it supports any Bowens-type light up to 800 W, including third-party brands.
