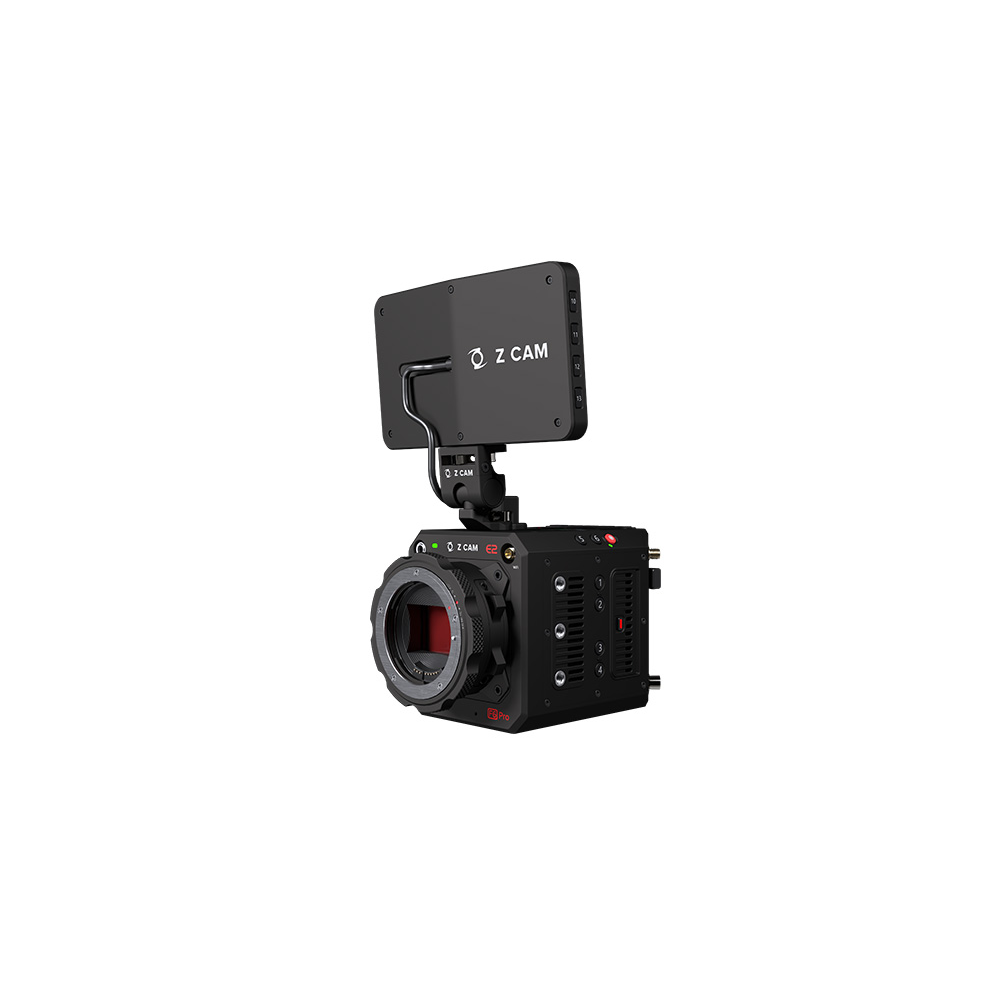

Z CAM E2-F6 Pro Full-Frame 6K Cinema Camera

Full Description

The Z CAM E2-F6 Pro is a compact, professional full-frame 6K60 cinema camera—an upgraded “Pro” version of the E2-F6 featuring a 5" touchscreen monitor, Genlock, timecode, and 12G-SDI/HDMI outputs. Its 37.09 × 24.75 mm CMOS sensor delivers up to 15 stops of dynamic range and records internally in 10-bit ProRes 422 HQ up to 4K120. Lightweight and modular (1.39 kg body, 1.68 kg with monitor), it’s ideal for filmmakers, documentarians, and indie creators seeking high-end cinematography in a compact form factor.

Main Features

• Full-frame 6K/4K recording: capture up to 6K60 and 4K120 in 10-bit ProRes 422/422 HQ with Z‑Log2 and 15 stops of dynamic range
• Integrated 5" touchscreen: detachable tilting monitor with full UI control, overlays, false color, and focus assist
• Interchangeable mount: EF mount included, optional PL and M mounts available
• Professional connections: 12G‑SDI, HDMI 2.0, Genlock, timecode, USB‑C, Gigabit Ethernet, 5 GHz Wi‑Fi
• Reliable storage: dual CFast 2.0 and optional ZBlade SSD (up to 4 TB) for high-bitrate ProRes HQ
• Dual native ISO: 400/2500 (expandable up to ISO 51,200)
• Advanced power options: integrated V-Mount battery plate and 2-pin DC input (12V/2A)
• Multicam ready: Genlock and timecode for precise multi-camera sync; ProRes RAW output via HDMI (with firmware 0.9.9 and Atomos recorder)
• Modular and compact: 108 × 108 × 157 mm body with 1/4″ mounting threads and adjustable cooling fan

Technical Specifications

• Sensor: Full-frame CMOS, 37.09 × 24.75 mm, 26 MP
• Dynamic Range: up to 15 stops
• Resolution & Frame Rates:
  • 6K Open Gate 6064×4040 @ 30 fps
  • 6K DCI 6064×3196 @ 48 fps
  • 6K 2.4:1 6064×2560 @ 60 fps
  • 6K UHD 5760×3240 @ 48 fps
  • 5K 4:3 5376×4032 @ 30 fps
  • 5K 6:5 4848×4040 @ 30 fps
  • 4K DCI 4096×2160 @ up to 90 fps
  • 4K 2.4:1 4096×1728 @ 120 fps
  • FHD 1920×1080 @ 120 fps
• Codec: ProRes 422 (Proxy, LT, 422, HQ), Z‑Log2, ProRes RAW 12-bit via HDMI (with Atomos)
• ISO: Dual native ISO 400/2500, extended up to ISO 51,200
• Lens Mounts: Canon EF (included); optional PL and M mount modules
• Monitor: 5" 1920×1080, 1000 nit brightness, full UI access
• Video Outputs: 12G‑SDI ×1, HDMI 2.0 ×1
• Audio: TRS 3.5 mm and optional LEMO XLR input; passthrough via SDI/HDMI
• Recording Media: CFast 2.0, ZBlade SSD up to 4 TB
• Power: Integrated V-Mount, 2‑pin DC input, 12V/2A DC out for accessories
• Interfaces: USB‑C, RJ45 Ethernet, 5 GHz Wi‑Fi
• User Controls: 13 total programmable buttons (4 on the monitor), touchscreen control
• Dimensions: 108.5 × 107.9 × 156.7 mm
• Weight: 1.39 kg (body only), 1.68 kg with monitor
• Cooling: Adjustable fan (auto/low/medium/high)
• Pro Video Outputs: Genlock, timecode in/out
• Firmware: v0.9.9 adds 12-bit ProRes RAW HDMI output, 4K DCI 50 fps, and improved timecode support

Box Contents

• Z CAM E2-F6 Pro body with Canon EF mount
• 5" touchscreen monitor with integrated cable
• D-Tap power cable
• USB-C data/control cable
• User manual
• 1-year official warranty

FAQ

Does it record internal RAW?

No, internal recording is up to 10-bit ProRes 422 HQ. However, 12-bit ProRes RAW output is available via HDMI with a compatible Atomos recorder and firmware 0.9.9.

Can I change the lens mount?

Yes, the camera includes an EF mount, and optional PL and M mounts are available separately.

Is it suitable for multi-cam production?

Yes, it includes Genlock and timecode for precise synchronization with multiple cameras.

What are the power options and power draw?

The maximum power draw is about 50 W. Power can be supplied via integrated V-Mount plate or 2-pin DC input. A 12 V/2 A DC output is available for powering accessories.
