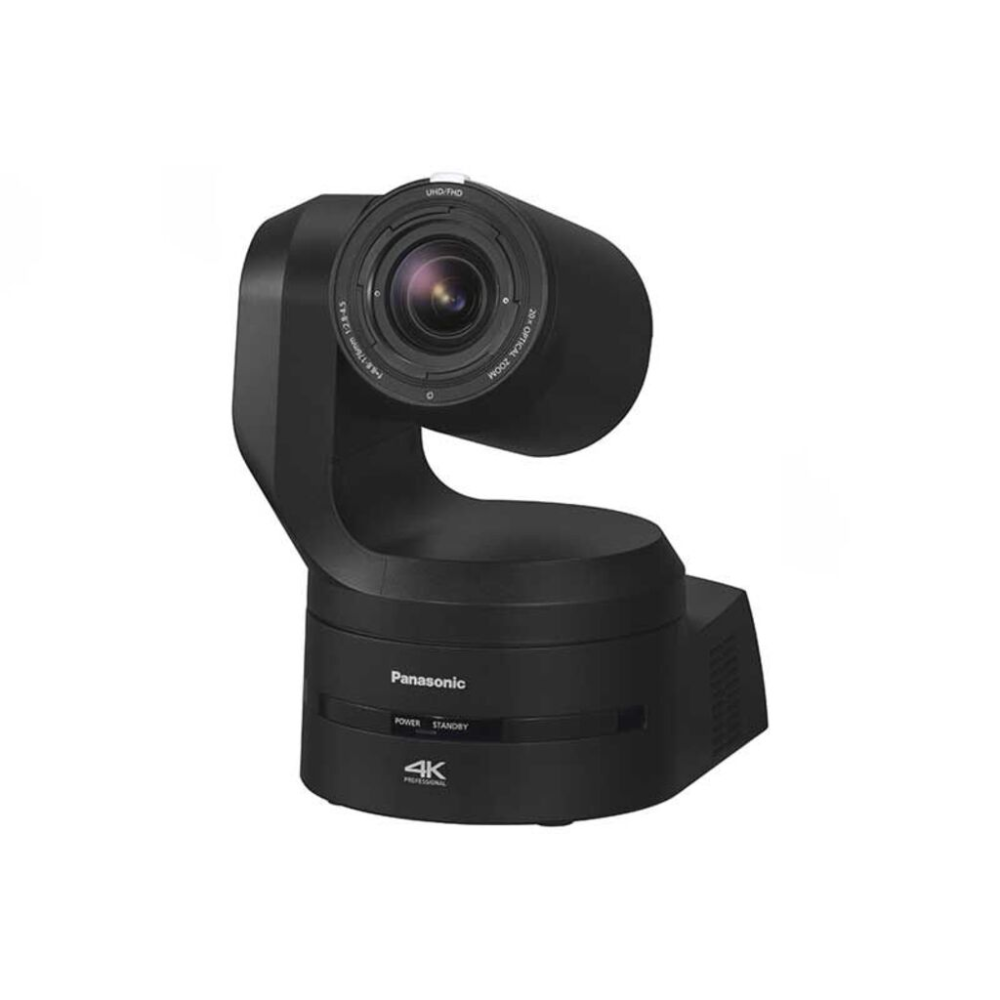

Panasonic AW‑UE160KEJ – Professional 4K PTZ Camera

Full Description

The Panasonic AW‑UE160KEJ is the flagship model of the Platinum PTZ line, built for demanding live production, broadcast, conferencing, houses of worship and sports. It features a whisper‑quiet 1″ 9.62 MP MOS sensor with ultra‑high sensitivity (F14/2000 lx) and an optical low‑pass filter to reduce moiré, ensuring crisp 4K imagery even in low‑light conditions :contentReference[oaicite:3]{index=3}.

With 20× optical zoom (24.5‑490 mm FF equivalent), i.Zoom and 2× extender, it captures wide to telephoto perspectives. Its advanced PDAF/Contrast AF offers fast, accurate autofocus, while OIS + EIS ensure stable images in motion :contentReference[oaicite:4]{index=4}.

For IP-based workflows it supports built‑in NDI/NDI|HX2, ST 2110 (optional key), SRT, RTMP/RTMPS; video outputs include 12G‑SDI, 3G‑SDI, HDMI and fiber. Two XLR inputs with phantom power add pro-level audio flexibility :contentReference[oaicite:5]{index=5}. Supporting PoE++ and an integrated return video input, it's ideal for AR/VR (FreeD), slow‑motion HD capture up to 120 fps and multi-camera installations :contentReference[oaicite:6]{index=6}.

Key Features

• Ultra-high sensitivity 1″ sensor (F14/2000 lx Low Light, F11/2000 lx Normal) :contentReference[oaicite:7]{index=7}
• 20× optical zoom, i.Zoom UHD×24 / FHD×32, 1.4× & 2× extenders :contentReference[oaicite:8]{index=8}
• Optical Low‑Pass Filter reducing moiré on LED walls :contentReference[oaicite:9]{index=9}
• Phase‑Detection autofocus (PDAF) + OIS + EIS for precise focus and stability :contentReference[oaicite:10]{index=10}
• Supports HD slow motion via 2× high-speed output (120 fps) :contentReference[oaicite:11]{index=11}
• Full connectivity: 12G‑SDI, 3G‑SDI ×2, HDMI 2.0, fiber, LAN, plus IP streaming :contentReference[oaicite:12]{index=12}
• Built-in IP protocols: NDI/NDI|HX2, ST 2110 (with license), SRT, RTMP/RTMPS :contentReference[oaicite:13]{index=13}
• Support for AR/VR (FreeD output), auto-framing AI, tally lights, return video input, V-Log/HDR and cropping features :contentReference[oaicite:14]{index=14}

Technical Specifications

• Sensor: 1″ MOS, 9.62 MP effective :contentReference[oaicite:15]{index=15}
• Lens: 8.8–176 mm (24.5–490 mm FF equiv.), F2.8–4.5
• Zoom: 20× optical, i.Zoom UHD×24/FHD×32, extenders 1.4×/2×
• Field of View: 75.1°–4° H, 46.7°–2.3° V
• Min Illumination: 2 lx (F2.8, 59.94p, 50 IRE, +42 dB gain) :contentReference[oaicite:16]{index=16}
• ND Filter: Through (night)/1/4/1/16/1/64
• Shutter: 1/48–1/2000 s (varies by frame rate) :contentReference[oaicite:17]{index=17}
• Frame Rates: UHD ≤60p, HD ≤120 fps (via 2× output)
• Connectivity: 12G‑SDI, 2×3G‑SDI, HDMI 2.0, fiber SFP+, LAN, RS-422, Genlock, USB
• Streaming Protocols: NDI/NDI|HX2, ST 2110, SRT, RTMP/RTMPS
• Audio: 2× XLR mic/line +48 V
• Power: DC 12 V (5 A) or PoE++ (IEEE 802.3bt)
• Consumption: ~5 A (XLR) / ~1.5 A (PoE++)
• Weight: ~4.6 kg
• Temp Range: 0–40 °C operating
• Controls: AW‑RP150/60, AK‑HRP1010/15/250 compatible
• Extras: AI auto-framing, FreeD, return input, tally lights, cropping, horizontal level gauge

Package Contents

• Panasonic AW‑UE160KEJ PTZ camera (black)
• Cable cover
• Mounting brackets (ceiling/wall)
• 12 V DC power supply & PoE++
• User manual & warranty card
• Software license key for SMPTE ST 2110

FAQ

What is the minimum illumination?

The camera offers ultra‑high sensitivity down to 2 lux (F2.8, 59.94p, 50 IRE, 42 dB gain).

Does it support IP streaming?

Yes, it supports NDI/NDI|HX2, SRT, RTMP/RTMPS, and optionally SMPTE ST 2110.

Can it be powered over Ethernet?

Yes, it supports PoE++ compliant with IEEE 802.3bt.

Is slow‑motion recording possible?

Yes, it supports up to 120 fps in HD via its dual-output functionality.
